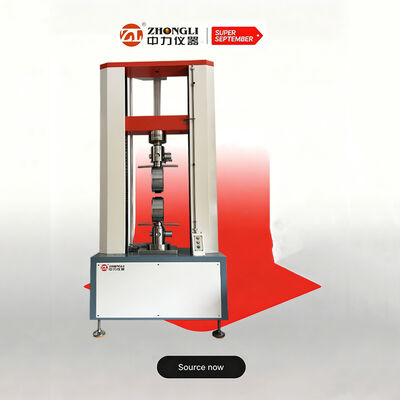

50kN Universal Tensile Testing Machine | ISO 6892 Fiber Reinforced Composites Test | Digital Control System

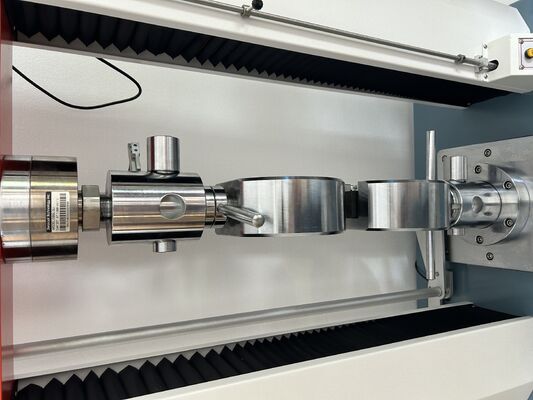

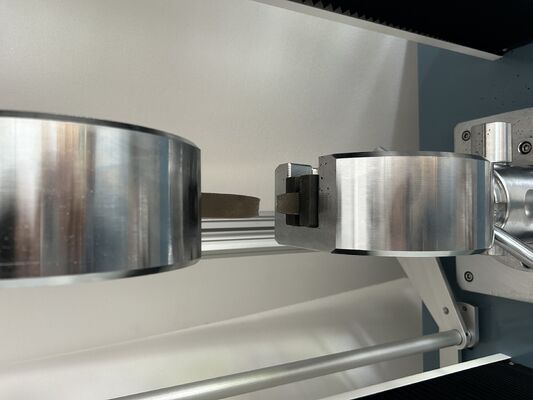

This test machine is designed for testing flexible materials with large deformation, including rubber, plastics, leather, and similar materials. It performs tensile, tear, adhesive strength, and peel tests, equipped with a large deformation extensometer for precise measurement of specimen deformation.

Widely used in quality control across multiple industries including:

• Rubber & Plastics
• Metallurgical iron and steel
• Manufacturing machinery
• Electronic equipment
• Automobile production
• Textile fiber
• Wire and cable
• Packaging materials and foodstuffs
• Instrumentation
• Medical equipment
• Civil nuclear energy
• Civil aviation
• Colleges and universities
• Research laboratories
• Inspection arbitration and technical supervision departments
• Building materials and ceramics
• Petroleum & Chemical

GB/T16491-1996 electronic universal testing machine

Electronic Universal Tensile Test Equipment combines electronic technology with mechanical transmission, featuring accurate load speed, force measurement range, and high accuracy for load and displacement measurement. Capable of constant-velocity loading and displacement testing, this machine is simple to operate and ideal for quality control in production lines, suitable for testing non-metallic and metallic materials with loads less than 2 tons.

• Tensile stress
• Tensile strength
• Rate of elongation at break
• Fixed stress
• Rate of stress at break
• Stress strength
• Tear strength
• The value of force at any point
• Rate of elongation at any point
• Pull-out strength
• Force of adhesion and the peak of force

Features include photoelectric encoder for displacement measurement, embedded single-chip microcomputer controller with multifunction software for measurement, control, calculation and storage. Automatically calculates stress, elongation rate (with extensometers), tensile strength, elastic modulus, and statistical results. Computer displays dynamic curves during testing with post-test data analysis and report generation capabilities.

• Standard modular function covering GB, ASTM, DIN, JIS, BS testing standards
• Product information database with formula-based automatic correction
• Dual-report editor with EXCEL format support
• Unit conversion for length and force measurements
• Auto-optimization of graphic scale with multiple graph comparison options
• EXCEL format output capability
• Automatic or manual test result preservation with comprehensive calculation features
• Historical data output capability
