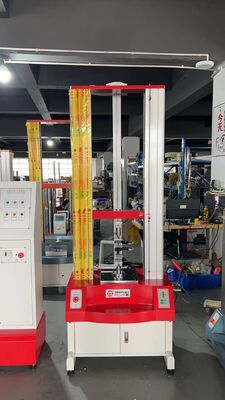

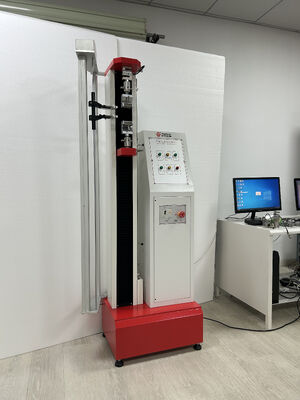

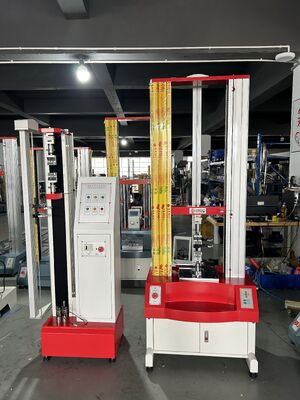

Automatic Spring Compression & Tension Tester
Large Capacity Test Machine for Compression & Extension Springs
Product Description
Application
The Spring Compressed and Tension Tester is designed according to national standards for spring tension and compression testing machines. Featuring an automatic control and data acquisition system, it provides full digital adjustment for data collection and control processes. Suitable for testing various springs including pressure springs, disk springs, leaf springs, gas springs, and custom-shaped springs, it performs precise tension, pressure, displacement, stiffness, and strength tests.
Technical Indicators
| Parameter |
Specification |
| Product Name |
Spring Compressed and Tension Tester |
| Style |
Door type |
| Maximum Test Force |
10KN, 20KN, 50KN, 100KN |
| Range |
2%-100% |
| Testing Force Accuracy |
±1% |
| Displacement Resolution |
0.01mm |
| Displacement Measurement Accuracy |
±1% |
| Stretching Stroke |
650mm (increases) |
| Compression Stroke |
650mm (increases) |
| Test Trip |
650mm (increases) |
| Displacement Speed Control Range |
1mm/min ~ 300mm/min (100KN 1-200mm/min) |
| Displacement Velocity Control Accuracy |
±1% |
| Level |
Level 1, testing machine |
| Deformation Shown Value Error |
less than (50+0.15L) um |
| Size of the Test Machine |
760*400*1700 mm |
| Appearance |
Meets requirements of GB/T2611 |
| Complete |
Meets standard requirements |
| Protection Function |
Overload protection |
| Power Supply |
220V, 50Hz |
| Weight |
350KG |
Function Introduction
- Automatic calibration of indication accuracy
- Automatic calculation of force displacement values
- Automatic range switching for measurement accuracy
- Real-time display of test force, peak, and test status
- Automatic completion of test processes
- Automatic stop when specimen fractures
- Two-level limit protection (machine and programmable)
System Configuration
- Special tensile/compression set (with assistive devices)
- Domestic servo motor and servo control system
- Precision reducer
- High precision load sensor
- Single chip microcomputer control system
Related Products

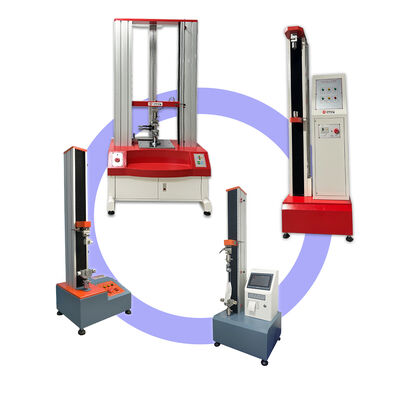

We can produce all spring test machines:
View All Spring Testers
About Us
We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China. Since 2007, we have specialized in manufacturing lab testing equipment. Our products have sold well in Europe, America, and Southeast Asia, reaching over 112 countries.
Our equipment covers various industries including rubber and plastics, food, packaging, and electronics, suitable for scientific research, quality inspection, and academic fields. Our R&D team can customize machines to meet your specific requirements.
Visit Our Store
FAQ
How to choose the most suitable Mechanical Equipment?
Our professional team will provide recommendations based on your testing needs and required specifications.
What's the delivery term?
Typically 15-20 working days after deposit receipt. Urgent orders can be accommodated.
Do you accept customization service?
Yes, we offer both standard and customized machines to meet your specific requirements.
Can we visit your factory before order?
We welcome visits and can assist with hotel arrangements and airport pickup.
Do you have customers in our country?
Our machines have been sold to over 109 countries including USA, Canada, Russia, UK, and many others.
How about your warranty?
Two-year warranty with technical support and parts replacement. Engineer visits available when necessary.
How about the packing for machine?
Standard export wooden box packing ensures safe transportation by sea or air.
What is the order process?
Inquiry → quotation → communication → order confirmation → deposit payment → production → testing → balance payment → packing → delivery.
How to install and use the product?
Includes English operating instructions and video.
