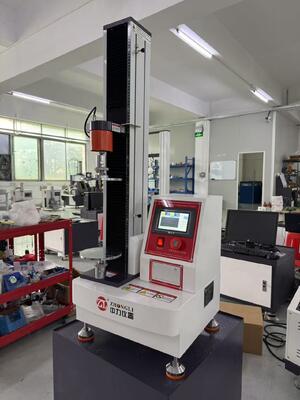

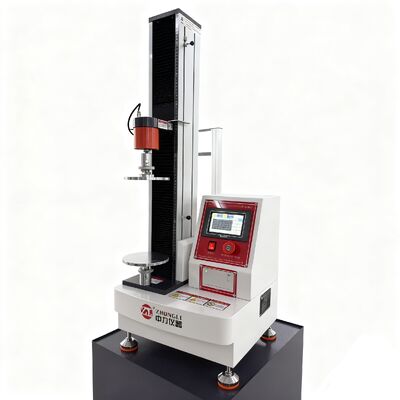

Computer Control Paper Tear & Tensile Tester | Digital Strength Testing Machine | for Packaging Material QC
Product Description
The
Computer Control Paper Tear Tensile Strength Tester is an advanced testing solution for quality control in various industries.
Main Functions
This Automatic Universal Tensile Testing Machine performs comprehensive material testing including tensile, compression, bending, shear, peel, tear, and two-point extended tests (with extensometer). It's suitable for quality control of textiles, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals, and other materials.
Corresponding Standard
Meets GB/T16491-1996 electronic universal testing machine standards.
Applicable Industries
Widely used in wire and cable, hardware, electronics, packaging, printing, medical equipment, auto parts, textiles, leather, clothing, shoes, rubber and plastic products, research laboratories, and technical supervision departments.
Technical Parameters
| Model |
Desktop Computer Automatic Universal Tensile Tester |
| Maximum load |
1KN high-precision sensors from U.S.A. |
| Capacity choice |
200N, 500N, 1KN or less than can be self-selected |
| Unit |
KG,N,LB,TON |
| Measurement system |
Load cell + HZ-2000 |
| Accuracy load of measurement |
± 0.5% (full range of 5% -100%) |
| Resolution |
1/50000 |
| Maximum test stroke |
About 500mm (customizable) |
| Test speed |
50-300mm/min (customizable) |
| Data sampling frequency |
200times/sec |
| Display |
ZL-2000 dark blue LCD display with membrane touch keys |
| Machine size |
45×58×135cm (L×W×H) |
| Weight |
75KG |
| Power supply |
1Φ, 220V, 15A |
Equipment Summary
This simple, easy-to-operate machine features electronic control systems and load sensors for tension/compression testing via motor rotation and T-screws. Ideal for production line quality control of non-metallic and metallic materials with loads under 1KN.
Main Features
- Premium aluminum construction with electrostatic spray finish
- Digital force display with LCD screen
- Multiple unit options (N, Kg, Lb, ton) with automatic conversion
- Backlit LCD for low-light environments
- Records maximum tension/compression forces with auto/manual zeroing
- Overload protection system
- Single-column design with ergonomic operation
- Advanced statistical functions with 10-point averaging
- 24-bit AD acquisition with 1/200000 resolution
- Breakpoint ratio adjustable from 0-99%
- Password protection for operator security
Software Operation
Intuitive interface for unit selection, computer connection (via COM ports), and test result analysis with servo control test curves.
Fixture Accessories Customization
About Zhongli Instrument Technology Co., Ltd
Since 2007, we've specialized in manufacturing lab testing equipment for rubber/plastics, food, packaging, electronics industries, and research institutions. Our products are exported to 113+ countries with European and American markets being particularly strong.
Frequently Asked Questions
How to choose the most suitable Mechanical Equipment?
Our team provides expert recommendations based on your testing requirements and specifications.
What's the delivery term?
Typically 15-20 working days after deposit for custom orders, with expedited options available.
Do you accept customization service?
Yes, we offer both standard and fully customized machines to meet specific requirements.
Can we visit your factory before order?
We welcome factory visits and can assist with travel arrangements.
Do you have customers in our country?
Our machines are used in 109+ countries including USA, Canada, Russia, UK, Germany, and throughout Europe and Asia.
How about your warranty?
Two-year warranty with technical support and potential on-site engineer visits if needed.
How is the machine packed for shipping?
Standard export wooden crates ensure safe transportation by sea or air.
What is the order process?
Inquiry → quotation → communication → order confirmation → deposit → production → testing → balance payment → packing → delivery.
How to install and use the product?
Includes English operating instructions and video guides.
